Mobile Plants

60sQuick response in 60 seconds

24h24-hour online service

365d365 days tracking service

Mobile Plants

ico 1 Feeding size: 0-1000 mm

ico 2 Processing Capacity: 30-500 TPH

Applied materials : river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, artificial sand stone chips.

Logistics diagram

Email ( contact@sinoftm.com )

we will reply to you within 24 hours.

The Advantages and Applications of Mobile Plant:

Mobile plant is the latest crusher developed by our company, with the world's advanced technology. The device has high performance, high reliability, attractive appearance, etc., so it is widely used in road and bridge construction, urban construction, metallurgy, energy and other sectors for crushing, screening, and other operations.

The Performance Characteristics of Mobile Plant:

  • 1. Mobile plants work under the hydrostatic principle, with small vibration, so it's more conducive to install.
  • 2. High crushing efficiency and stable running of the material layer of cone crusher also largely saves time.
  • 3. Flexible device configuration. The crawler-type mobile cone crusher can work independently and also cooperate with other crushers.

Mobile jaw crusher

Why Choose Us:

  • 1. Integrated installation, strong overall coordination, reasonable and compact layout saves time and space for on-site construction and increases flexibility, eliminating a large number of site infrastructure, greatly reducing the investment costs.
  • 2. It has a high vehicle chassis, and the body width is less than the semitrailer, which means turning radius is small. It is easy to drive at rugged harsh road environment, and more conducive to enter the construction area.
  • 3. It has many functions that it can not only works as fine crusher but also can produce sand and gravel materials with small or medium granularity, reducing the transportation costs of materials. In addition, the mobile crusher also can directly move the crushed materials into the wagon bucket, to facilitate timely transportation.

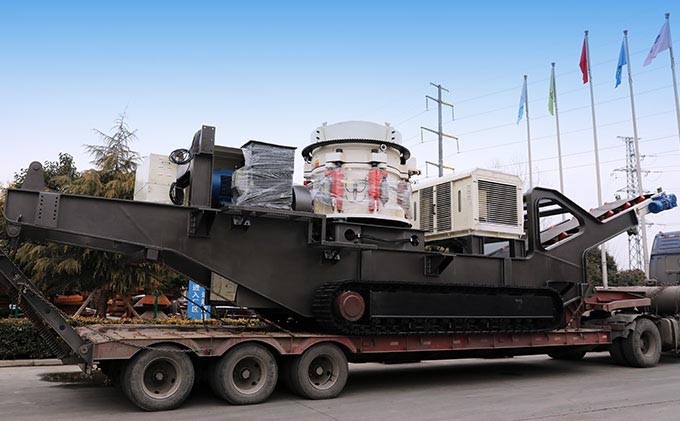

Mobile cone crusher

Materials can be directly fed into cone crusher to get the desired particle size, then the finished sand and gravel with different specifications can be classified by circular vibrating screen, and then stacked or transported by the conveyor. As the crawler-type mobile cone crusher is the new type of cone crusher, it can be achieved one step crushing and processing, greatly improving its work efficiency.

Parameter

Classification
of items
A type Dual power crawler type mobile
feeding and screening plant
B type Dual power crawler type mobile
 feeding and screening plant
models Y3S154GL Y3S184GL Y3S186GL Y3S154BL Y3S184BL Y3S186BL
Vibrating
screen(mm)
3YZS1548 3YZS1848 3YZS1860 3YZS1548 3YZS1848 3YZS1860
Main belt
conveyor
Belt conveyor feeding Sorting and feeding
Belt
conveyor
Feeding
belt
conveyor
B1000×4M B1000×4M B1200×4.5M B1200×3M B1200×3M B1200×3M
Main belt
conveyor
B800×5M B1000×5M B1000×5M B1000×8M B1200×8M B1200×9M
Under
vibrating
 screen
B800×4.5M B1000×4.5M B1000×5.5M B800×7M B1000×7M B1000×8M
Left side-opening
 belt conveyor
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor1
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor2
B500×7.3M B500×7.3M B500×7.3M B500×7.3M B500×7.3M B650×7.3M
Genset(kw) 120 120 120 120 120 120
Transportation
length(mm)
12300 12300 13500 12000 12000 13200
Transportation
width(mm)
2700 2920 2920 2900 3150 3150
Transportation
height(mm)
3900 3900 3900 3600 3600 3700
Transportation
Weight(t)
28 30 34 28 32 35
Models Transportation
length(mm)
Transportation
width(mm)
Y3S154GL 12300 2700
Y3S184GL 12300 2920
Y3S186GL 13500 2920
Y3S154BL 12000 2900
Y3S184BL 12000 3150
Y3S186BL 13200 3150
