10 Types of Stone Crusher Plants Price and More for Sale

Author : Jordan | Last Updated :

The stone crusher plant is used for producing sand, rock and stone for construction, highway, railway and other applications. Fote Heavy Machinery, with 40 years of experience in the stone crushing production line, is skilled in the production line process design and has a high-cost performance.

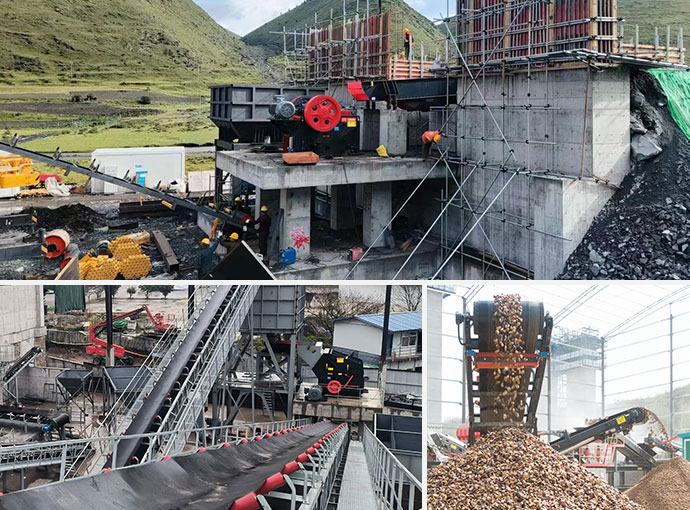

Stone production line

Fote stone crusher plant and stone crushing equipment have been sold to hundreds of countries, such as India, Pakistan, Indonesia, Nigeria, Kenya, the USA, Ghana, Zimbabwe, Nepal, Philippines, the UK, Vietnam, Iceland, Canada, etc.

logo
Is stone crusher plant a profitable business? How do you set up a stone crushing plant? Fote stone crusher plant

Is stone crusher plant a profitable business?

The stone crusher plant to crush stones has been sought after and the sales market of the equipment is very good in recent years due to its wide application, new design, high production efficiency, strong capacity and stable operation. The investment prospect of the stone crusher plant is driven by certain external factors. Let's analyze the investment market of the stone crushing plant.

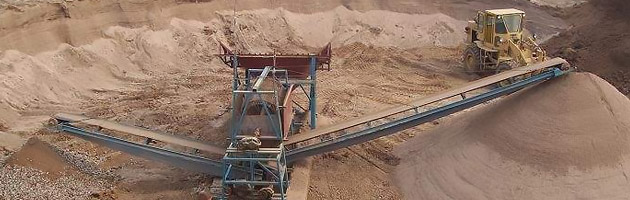

Gradually exhausted natural sand and gravel resources

Natural gravel resources are depleting

In recent years, natural sand and gravel resources have gradually dried up. However, with the development of modern construction projects, the demand for sand and gravel resources has been increasing. The market for artificial stone crusher plant is in great demand and the prospect for investment and benefits are promising. Only by increasing the investment in the stone crusher plant can people meet the daily demand for sand and gravel materials for construction applications.

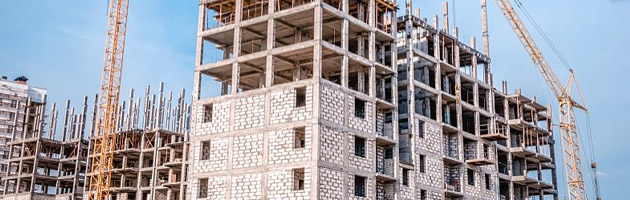

Strong demand for infrastructure construction

Strong demand for infrastructure construction

The most common application of crushed stone and rock is to make concrete, which greatly affects the strength of concrete. The stone crusher plant can provide coarse aggregate for infrastructure construction industries such as expressways, high-speed railways, ports, airports, nuclear power, commercial and residential buildings, so it has a prosperous future.

Return on investment budget

The investment cost of a stone factory ranges from hundreds of thousands to several million dollars, which leads to a difference in the later capital return cycle. The later expenses are mainly equipment maintenance, labor and transportation costs, etc., among which equipment maintenance is the main part, so the choice of machine is crucial. The quality of the Fote stone crusher plant is excellent, which usually enables the customer to recover the cost more quickly (the exact time varies).

How do you set up a stone crushing plant?

The stone crusher plant is generally composed of the feeder, crusher, vibrating screen, belt conveyor and other equipment.

The feeder, vibrating screen and belt conveyor are all configuration equipment. The main equipment of a stone crusher plant is the crusher. The crushed stone production line is generally divided into coarse (primary), secondary and fine crushing according to its output fineness. How many types of crushers and machines are there?

Coarse

Coarse crushing

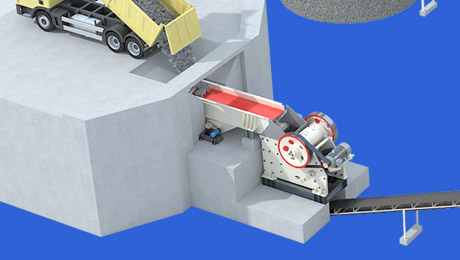

Jaw crusher.

The stones mined from the mountain can be crushed to medium size at primary crushing. The size of the finished products after being crushed is generally between 10-30 cm.

Medium fine

Secondary and fine crushing

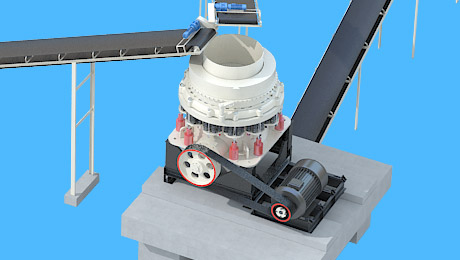

Impact crusher and cone crusher.

The cone rock crusher can crush high-hardness stones such as basalt, granite, river pebble, tuff, volcanic rock and other rocks; while the impact rock crusher can crush low-hardness stones such as limestone and bluestone. After secondary crushing, 1-2/1-3 cm stones can be directly produced.

Finely crushed

Fine crushing

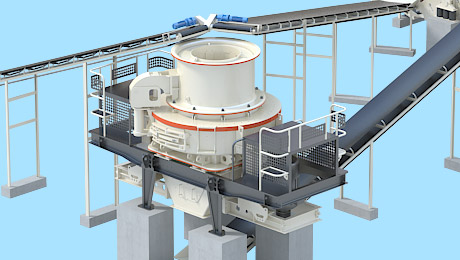

Sand making machine.

The stones can be further crushed into small sands under 5 mm, or the shape of the stones can be better.

Fote stone crusher plant

As a professional stone crusher plant equipment manufacturer, Fote Heavy Machinery insists on providing customers with high yield, energy-saving and environmental protection rock crushers and other machines.

Fote can customize stone crusher plants for customers. The following will introduce the stone crushing production lines with different outputs, including stone crusher plant layout, stone crusher plant machines and stone crusher plant estimated cost.

Mini (5 TPH) stone crusher plant in Pakistan

Video Video

Customizable
  • Capacity: 5 TPH
  • Raw material: Limestone
  • Estimated investment: $ 6,700-$ 7,800
materials
Raw material hardness Soft
Feeding size ≦200 mm
Type of production line Fixed
Floor area About 50*5 m
Types of finished products 1
Finished product specifications 0-24 mm
Production line

Stone crusher plant machine: Silo, GZ2 electro-vibrating feeder, PE250×400 jaw crusher, B500×22 m belt conveyor, B500×15 m belt conveyor, B500x16 m belt conveyor, 2YK1225 vibrating screen, B500x10 m belt conveyor.

Haniya Silberman, the marketing manager of a stone plant in Pakistan, is very satisfied with Fote's stone crushing equipment to crush limestones and the production line "runs very smoothly," Haniya said.

20 TPH stone crusher plant in India

  • Capacity: 20 TPH
  • Raw material: Bluestone
  • Estimated investment: $ 9,500-$ 11,000
materials
Raw material hardness Soft
Feeding size ≦200 mm
Type of production line Fixed
Types of finished products 2
Finished product specifications 0-10, 10-20 mm
Production line

Stone crusher plant machine: Silo, B500x15 m belt conveyor, PC600x400 hammer crusher, B500x16 m belt conveyor, B500x17 m belt conveyor, 2YK1225 vibrating screen, B500x10 m belt conveyor (Two sets).

Mr. Jagjeet Pillai from India stated that Fote not only designed the crushing machines, but also installed and debugged the equipment for free.

50 TPH-80 TPH stone crusher plant in Nigeria

Video Video

Customizable
  • Capacity: 50 - 80 TPH
  • Raw material: Ore
  • Estimated investment: $ 58,000-$ 70,000
materials
Raw material hardness Hard
Feeding size ≦400 mm
Type of production line Fixed
Types of finished products 3
Finished product specifications 0-5, 5-40, 40-70 mm
Production line

Stone crusher plant machine: Silo, GZD850x3000 vibrating feeder, PE500×750 jaw crusher, B650×20 m belt conveyor, PF1010 impact crusher, B650x25 m belt conveyor, B500×26 m belt conveyor, 3YK1545 vibrating screen, B500x15 m belt conveyor (Three sets), B500x10 m belt conveyor.

Sardauna from Nigeria said, "Fote stone crusher plant with new design for sale can crush stones with strong production capacity and high output, which fully meet our requirements for rock and stone crusher machines."

80 TPH stone crusher plant in Kenya

  • Capacity: 80 TPH
  • Raw material: Granite
  • Estimated investment: $ 65,000-$ 76,000
materials
Raw material hardness Hard
Feeding size ≦10 mm
Type of production line Portable
Types of finished products 1
Finished product specifications 0-5 mm
Production line

Stone crusher plant machine: Silo, B650x20 m belt conveyor, HXVSI8518 sand making machine, B650×22 m belt conveyor, B500×27 m belt conveyor, YTS1500x5000 trommel screen, B500x15 m belt conveyor, XS2914 sand washing machine, B500x10 m belt conveyor.

Kipsang Hillary, a Kenyan purchasing manager who has been buying the Fote stone crusher plant machines for three years, said the equipment had no problem except for a few stoppages when changing spare parts.

100TPH stone crusher plant in the USA

Video Video

Customizable
  • Capacity: 100 TPH
  • Raw material: Limestone
  • Estimated investment: $ 40,000-$ 50,000
materials
Raw material hardness Soft
Feeding size ≦600 mm
Type of production line Fixed
Types of finished products 2
Finished product specifications 0-5, 5-10 mm
Production line

Stone crusher plant machine: Silo, GZD850×3000 vibrating feeder, PCZ1308heavy hammer crusher, B800x22 m belt conveyor, 2YK1854 vibrating screen, B650x24 m belt conveyor, B500x10 m belt conveyor (Three sets).

Jacob Davis, the vice president of a mining company in the United States said, "The equipment sold by Fote is highly automated, environmentally friendly and reduces manpower input costs. It was the correct decision to select Fote crushers and other machines."

150 TPH stone crusher plant in Ghana

Video Video

Customizable
  • Capacity: 150 TPH
  • Raw material: Granite
  • Estimated investment: $ 105,000-$ 220,000
materials
Raw material hardness Hard
Feeding size ≦500 mm
Type of production line Portable
Types of finished products 3
Finished product specifications 0-10, 10-20, 20-30 mm
Production line

Stone crusher plant machine: YB5030 belt conveyor, De-ironing separator, Mobile Crushing and Screening Plant, B800x8.5 m belt conveyor, B800x15 m belt conveyor, B800x14 m belt conveyor (Two sets), B500x15 m belt conveyor (Two sets), B800x8 m belt conveyor.

Francis from Ghana said that the 150 TPH stone crusher plant to crush granite purchased from Fote was efficient and profitable and he looked forward to the next cooperation.

200 TPH stone crusher plant in the Philippines

Video Video

Customizable
  • Capacity: 200 TPH
  • Raw material: Granite
  • Estimated investment: $ 220,000-$ 230,000
materials
Raw material hardness Hard
Feeding size ≦630 mm
Type of production line Fixed
Types of finished products 4
Finished product specifications 0-5, 5-10, 10-20, 20-30 mm
Production line

Stone crusher plant machine: Silo, ZSW490x110 vibrating feeder, PE750x1060 jaw crusher, B1000x24 m belt conveyor (Two sets), HXGYS400 hydraulic cone crusher, HXVSI1140 sand making machine, B1000x30 m belt conveyor, 4YK2460 vibrating screen, B650x44 m belt conveyor, B500x10 m belt conveyor, B500x15 m belt conveyor (Four sets).

Wipha, a purchasing manager of a quarry in the Philippines, chose Fote crushers and machines on the recommendation of a friend. We carefully designed a 200 TPH stone crusher plant for him according to the on-site survey to meet his production requirements.

300 TPH stone crusher plant in the UK

Video Video

Customizable
  • Capacity: 300 TPH
  • Raw material: Limestone
  • Estimated investment: $ 170,000-$ 182,000
materials
Raw material hardness Soft
Feeding size ≦630 mm
Type of production line Fixed
Types of finished products 3
Production line

Stone crusher plant machine: Silo, ZSW490x110 vibrating feeder, HD98 jaw crusher, PF1315 impact crusher (Two sets), B1200x28 m belt conveyor, B1000×37 m belt conveyor, B1200×35 m belt conveyor, 3YK2870 vibrating screen, B800x15 m belt conveyor (Three Sets), B500x10 m belt conveyor.

Lucas Miller from the United Kingdom invested in a stone crusher plant. He is very satisfied with Fote 300 TPH stone crushing plant with the characteristics of stable running, high output and easy on-site operation and maintenance.

600 TPH stone crusher plant in Zimbabwe

Video Video

Customizable
  • Capacity: 600 TPH
  • Raw material: Granite
  • Estimated investment: $ 1,150,000-$ 1,300,000
materials
Raw material hardness Hard
Feeding size ≦1000 mm
Type of production line Fixed
Types of finished products 4
Finished products specifications 0-5, 5-10, 10-20, 20-30 mm
Production line

Stone crusher plant machine: Silo, ZSW600x150 vibrating feeder, PE1200x1500 jaw crusher, B650x15 m belt conveyor, B1600x37 m belt conveyor, SC315 cone crusher (Two sets), B1600x43 m belt conveyor, B1400x45 m belt conveyor, B1400x13 m belt conveyor, 2YK3072 vibrating screen (Four sets), B1000x15 m belt conveyor (Eight sets), B1400×43 m belt conveyor, SC315S cone crusher, B1600×31 m belt conveyor.

Mutanga from Zimbabwe said, "Fote's after-sales and technical staffs can regularly visit the site and provide technical guidance, so we are very relieved."

1000 TPH stone crusher plant in Canada

  • Capacity: 1000 TPH
  • Raw material: Bluestone
  • Estimated investment: $ 850,000-$ 950,000
materials
Raw material hardness Soft
Feeding size ≦800 mm
Type of production line Fixed
Types of finished products 4
Finished products specifications 0-5, 5-10, 10-20, 20-30 mm
Production line

Stone crusher plant machine: Silo, ZSW600x180 vibrating feeder, PE1500×1800 jaw crusher, Bl600x20 m belt conveyor, Intermediate bin, B1600x41 m belt conveyor (Two sets), PF1820 impact crusher (Two sets), B1600×10 m belt conveyor, 2YK3072 vibrating screen (Four sets), B1000×20 m belt conveyor (Four sets), B1000x12 m belt conveyor (Four sets), B1400x12 m belt conveyor, B1000x15 m belt conveyor, B1400x33 m belt conveyor (Two sets), B1400×34 m belt conveyor.

Alexander Clark from Canada said, "This 1000 TPH stone crusher plant has reasonable equipment configuration, good finished stone size and large production capacity."
