A brief introduction to poultry manure dryer
Poultry manure is a relatively high-quality organic fertilizer, which can improve the physical, chemical, and biological characteristics of the soil, and perfect the fertility of the land.
Taking chicken manure as an example, it consists of 2.6% of nitrogen, 3.5% of phosphorus, 2.5% of potassium, 16-25% of crude protein, and 45% of other organic matters after drying. It is known as the best choice of fertilizer for pollution-free green food cultivation.
After being dried, poultry manure can also be used as feed additives for fish, pigs, and cattle farming.
After being processed by the briquetting machine, it can be used as a high-density fuel, replacing coal and oil to be an environmental and economic fuel.

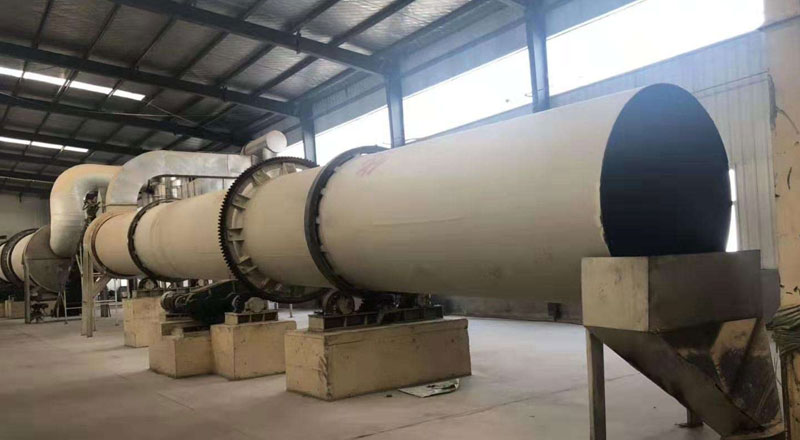

Poultry manure dryer
Poultry manure dryer is a drying machine specially used for drying poultry manure. It is used to kill parasites and infectious pathogens inside the poultry, effectively removing the water in the manure and making better use of it.
Poultry manure dryer's applications
Poultry manure dryer can be suitable for drying poultry manure with a water content of less than 80%, such as duck manure, quail manure, pigeon manure, chicken manure, and cow manure.
Poultry manure dryer is used in large, medium, and small poultry farms such as chicken farms, duck farms, and quail farms, and other organic fertilizer processing plants or enterprises.

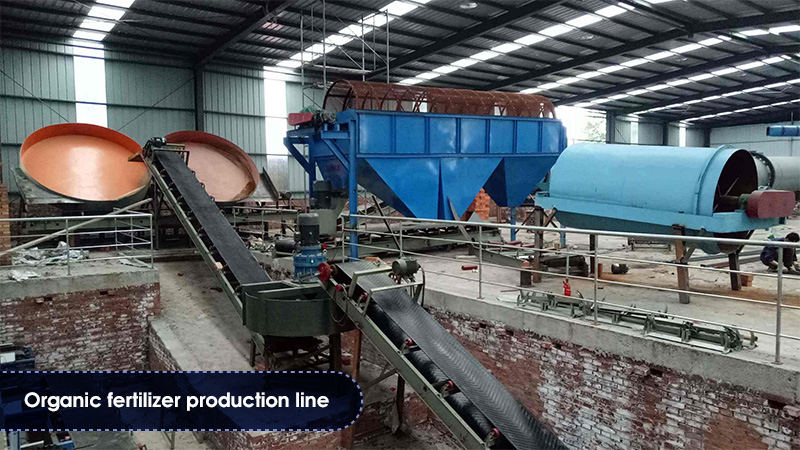

Poultry manure dryers can be combined with a closed-mode organic fertilizer production line to produce no pollution to the environment and bring high economic benefits.
Fote poultry manure dryer's advantages
Fote poultry manure dryer for orginic fertilizer
High production efficiency and strong ability
The poultry manure dryer adopts the downstream drying method, and the material and heat airflow enter the drying equipment from the same side.
Poultry manure dryer can dry fresh poultry manure with 80% moisture to organic fertilizer with under 13% moisture. The production capacity can be selected within the range of 1.9 to 76 tons, and can also be customized according to customers' needs.
More flexible operation
The poultry manure dryer adopts an automatic temperature monitoring system, which makes the operation more flexible and humanized.
Operators can automatically adjust the internal temperature of the dryer according to the needs of the moisture.
And the operating environment is good, which is conducive to the realization of automation and safe production.
More stable running status

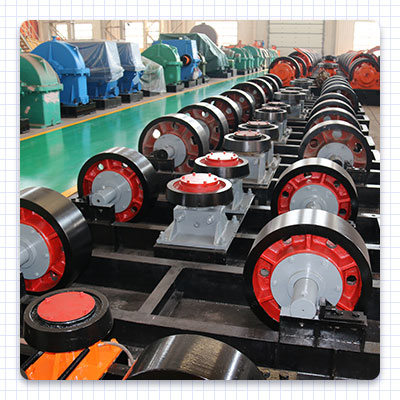

The driving method of the manure dryer adopts the patented technology in the supporting roller device, which changes the traditional contact method between the supporting roller and the rolling ring.
It reduces the wear and power consumption of the roller, rolling ring and the driving gear, and improves the stability of the cylinder operation.
More energy saving and environmental protection
The exterior of the poultry manure dryer is wrapped with high-strength insulation materials, greatly reducing heat loss. In addition, the dryer uses a closed system to prevent heat leakage.
Working principle of poultry manure dryer

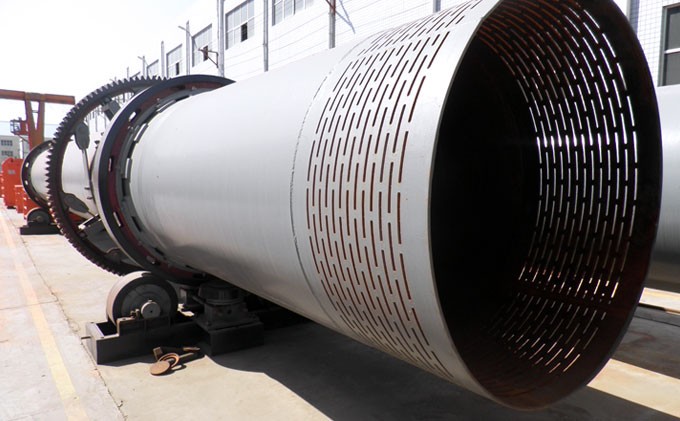

Poultry manure dryer machine is primarily composed of heating source, feeding port, rotary drum, crushing system, discharging port, lifting boards, induced draft fan, power distribution cabinet, and other parts.
Wet dehydrated materials enter the dryer from the feeding port. And under repeatedly lifting by boards, they will be dispersed in the dryer and fully contact with hot air to accelerate the drying process.
During the process of drying and under the action of heat and the treatment of inclined lifting boards, the materials move to the discharging port of the poultry manure dryer and are discharged out of the machine.
Tips: the whole handling process of poultry manure (drying process included)
- 1 Fermentation
- 2 Crushing
- 3 Drying
- 4 Cooling
- 5 Screening
- 6 Packaging
Customer case

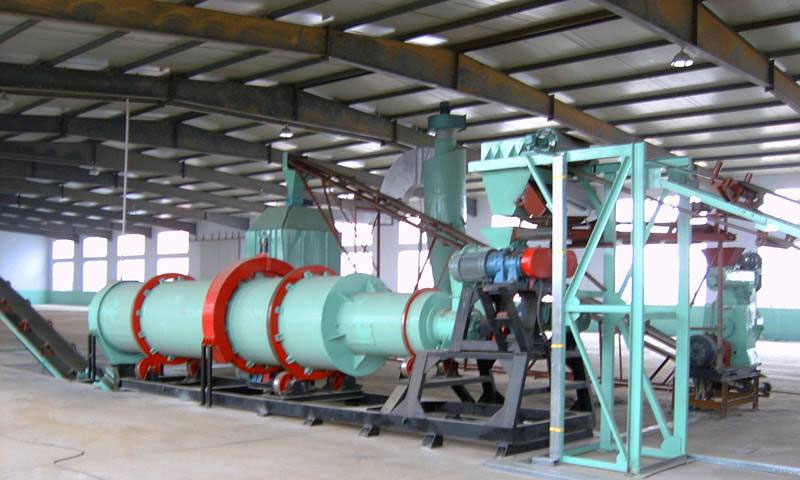

Chicken manure dryer for sale in India
Chicken manure dryer for sale in India
- Model: Φ1.2×8.0
- Output: 2 tons per hour
- Speed: 6 r/min
- Installation angle: 5°
- Material: chicken manure with 50% water content
- Heat source: coal
- Customer feedback: This drying equipment solved my chicken manure accumulation problem and greatly improved the environmental conditions of the farm. The dried chicken manure sold to other aquaculture farms also brought me a lot of profits.
Chicken manure dryer for sale in the UK
Chicken manure dryer for sale in the UK
- Model: Φ1.5×14
- Output: 6 tons per hour
- Speed: 6 r/min
- Installation angle: 4°
- Material: chicken manure with 40% water content
- Heat source: natural gas
- Customer feedback: I use this machine to process the recovered chicken manure to make fish feed, mixing with a certain proportion of corn flour, bean cake, rapeseed cake, and bran, etc.
Cow manure dryer for sale in Australia
Chicken manure dryer for sale in the Australia
- Model: Φ2.2×12
- Output: 10 tons per hour
- Speed: 6 r/min
- Installation angle: 4°
- Material: cow manure with 60% water content
- Heat source: natural gas
- Customer feedback: My farm has accumulated a lot of cow manure, which is very detrimental to the growth of my cows. After the introduction of this equipment, I was able to process cow manure in time to make organic fertilizer for green cultivation, which increased my income.
FAQ of Poultry manure dryer
What can be used as a heat source for poultry manure dryers?

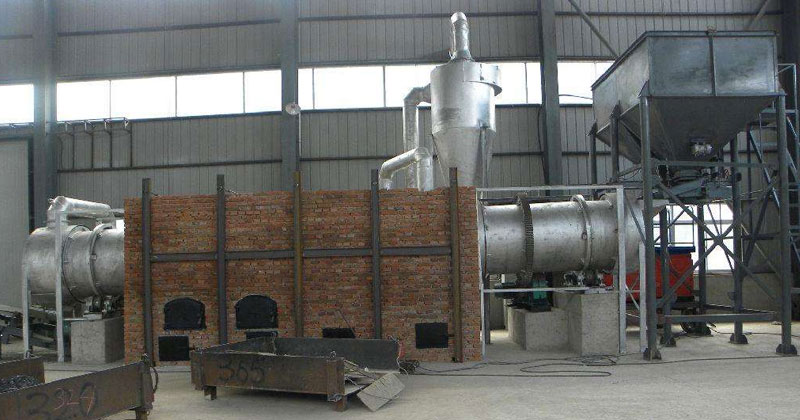

There are many choices for the heat source of the dryer. In general, all heat sources that can dissipate heat can be used for drying. Fote recommends that you can use coal, natural gas, biogas, and oil as the heat source.
How should the poultry manure dryer be cleaned?
Fote poultry manure dryer adopts high-quality coating, which is anti-rust and wear-resistant. In case you can first rinse with water and then wipe with a soft cloth when cleaning.
How to prevent fire during the drying process?
First of all, as a drying machine manufacturer, Fote has complete equipment operation training services, which will effectively solve any problems in your operation process.
Secondly, the fire in the drying process is caused by the contact of the naked flame with the material, so attention should be paid to the isolation between material and the heat source during installation.
Finally, the poultry manure drying machine should timely discharge the materials during the drying process.
Parameter
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
Installation
Obliquity (%) |
Highest Inlet
Air Temperature (℃) |
Main Motor
(kw) |
Weight
(t) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell Length (m) |
Shell cubage (m³) |
Shell obliquity |
Lifting blade form |
Highest inlet air temperature (℃) |
Dimensions (m) |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
