Dry Mortar Production Line

60sQuick response in 60 seconds

24h24-hour online service

365d365 days tracking service

Dry Mortar Production Line

ico 1 Processing Capacity: 1.9-76 t/h

ico 2 Main Equipment: systems of storage, metering and batching, conveying, mixing, air compressor, packaging, and dedusting, etc.

Description:FTM automatic dry mortar production line is professional at producing dry mixing material used as a building material for bridges, railways, sewage treatment, etc. Dry mortar can be easily used and restored and its main binder is cement.

Email ( contact@sinoftm.com )

we will reply to you within 24 hours.

Detailed Description

The Major Equipment of Dry Mortar Production Line

The production line consists of a storage system, metering and batching system, conveying system, mixing system, air compressor system , packaging system, and dedusting system, etc.

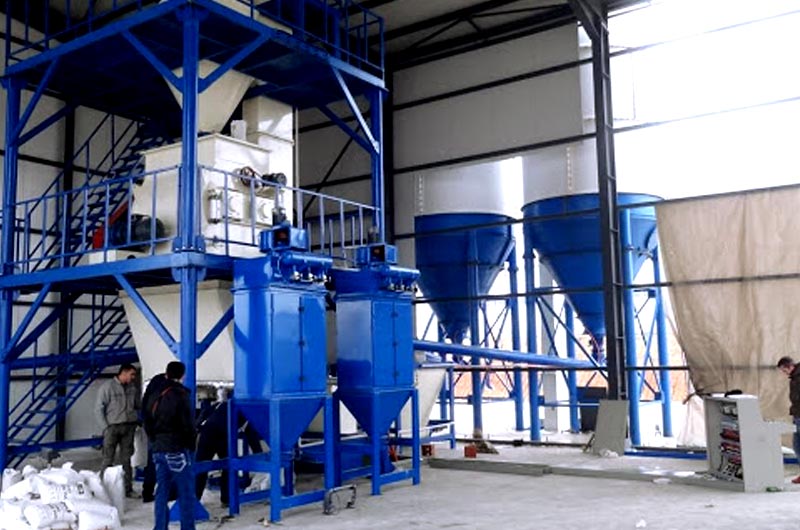

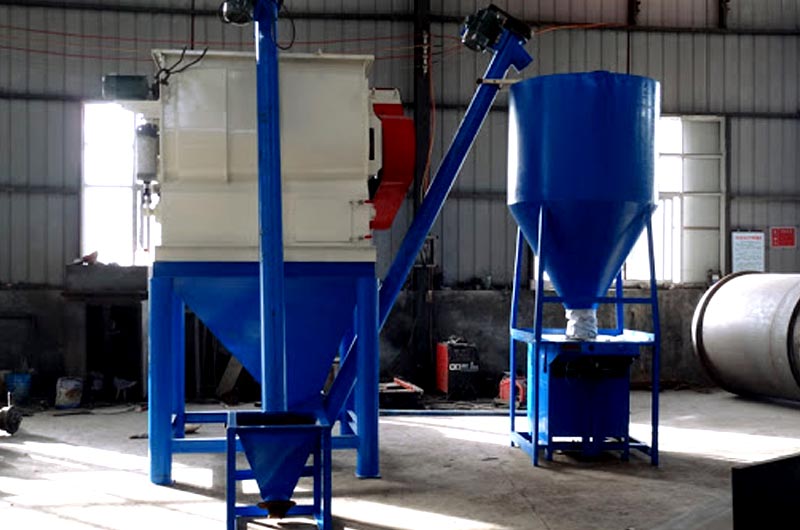

Mortar Production Line

Mortar Production Line

The Raw Materials of Dry Mortar Production Line

  • Cementing material: cement, lime, plaster.
  • Aggregates: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
  • Mineral admixtures: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
  • Water-retention and thickening material.

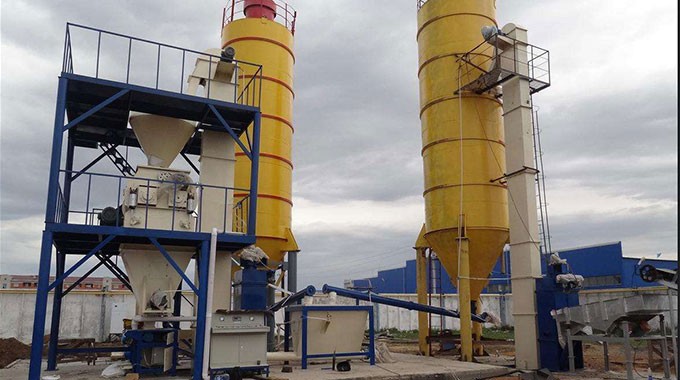

The outside of Mortar Production Line

The outside of Mortar Production Line

Powerful characterists of automatic dry mortar production line

  • Reasonable design height make installation and maintenance easy and simple
  • Affordable mortar mix price and high profits
  • The critical parts of dry mix mortar production line are high quality and longevity
  • All materials can be evenly mixed
  • Three systems including vibrating screen system, drying system and stirring system can work apart.
  • This production line is equipped with three-cylinder dryer to make sand water content below 0.5%
  • Weighing device adopts an independent system, which greatly improves the accuracy
  • We equip dry mortar production line with dust collection system, which effectively protect the working and living environment
  • The completely automatic control system make operation and management much easier
