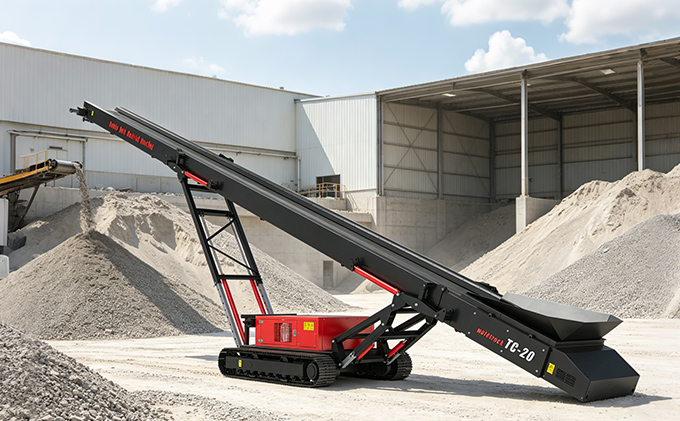

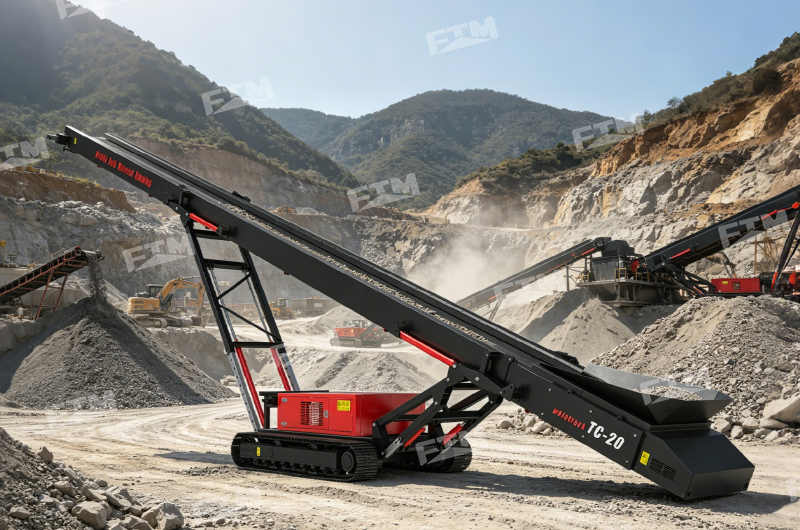

The Tracked Mobile Conveyor is a heavy-duty bulk material handling system for efficient stockpiling, transferring, loading, and conveying in quarrying, mining, aggregates, recycling, ports, and construction industries.
Designed to work with crushers, screeners, and other material processing equipment, this tracked conveyor solution helps increase stockpile capacity, reduce material handling costs, and improve site efficiency.
Efficient mobile conveying for quarrying, mining & aggregates

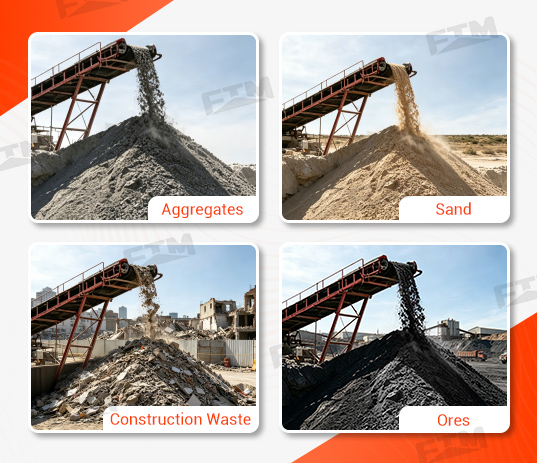

The CT Tracked Mobile Conveyor provides mobile and flexible conveying for bulk material handling. It is suitable for aggregates, sand, gravel, ores, coal, construction and demolition waste, wood chips, biomass, fertilizers, grains, and truck loading.
Each tracked conveyor model delivers high-capacity conveying and stockpiling performance. It reduces labor, handling time, and on-site operating costs.
Conveyor length: 15.8–23.3 m
Belt width: 800–1000 mm
Stockpiling height: 6.5–9.5 m
Conveying capacity: 300–450 t/h
Power type: Full hydraulic / Dual power system
Why choose FTM Machinery tracked mobile conveyor?
1. High mobility
The crawler track system allows easy movement on job sites, including rough and uneven ground. The machine can be repositioned quickly without extra lifting equipment.
2. Maximize stockpile capacity
The conveyor allows operators to create larger stockpiles while minimizing double handling and reducing wheel loader usage.
3. Lower operating costs
By reducing manual handling, fuel consumption, and auxiliary equipment requirements, the tracked conveyor helps lower overall operating costs.
4. Fast setup and transport
The hydraulic folding structure enables quick setup and compact transport dimensions for easier shipping and site deployment.
Streamline your material handling today
Our tracked mobile conveyors seamlessly integrate with your existing crushing and screening plants to maximize site efficiency.
Ready to eliminate double handling and cut operational costs? Contact us today for a free customized site layout design, detailed quotation and competitive factory-direct pricing with fast global shipping.
Get a Free Quote & Layout Design
Parameter
| Model | CT0816 | CT0820 | CT0824 | CT1016 | CT1020 | CT1024 | |
| Belt Conveyor | Width (mm) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Height(m) | 15.8 | 19.3 | 23.3 | 15.8 | 19.3 | 23.3 | |
| Stacking Height(m) | 6.5 | 8 | 9.5 | 6.5 | 8 | 9.5 | |
| Stacking Volume(m) | 410 | 760 | 1280 | 410 | 760 | 1280 | |
| Conveying Capacity(t/h) | 300 | 300 | 300 | 450 | 450 | 450 | |
| Power Type | Fully Hydraulic | Engine 37.5kw | |||||
| Dual Power | Engine set 45kw | ||||||
| Crawler Chassis | Soleplate Width(mm) | 400 | |||||
| Wheel Track(mm) | 3000 | ||||||
| Height(mm) | 625 | ||||||
| Main Machine | Control Method | wireless remote control | |||||
| Remote Control Distance(m) | ≈50 | ||||||
| Transport overall dimensions (L×W×H)(m) | 10.4×2.29×2.5 | 10.4×2.29×2.5 | 12.2×2.29×2.5 | 10.4×2.29×2.5 | 10.4×2.29×2.5 | 12.2×2.29×2.5 | |
Note: Processing capacity may vary with different materials and feeding sizes.
| Model | Belt Conveyor | ||
| Stacking Height(m) | Stacking Volume(m) | Conveying Capacity(t/h) | |
| CT0816 | 6.5 | 410 | 300 |
| CT0820 | 8 | 760 | 300 |
| CT0824 | 9.5 | 1280 | 300 |
| CT1016 | 6.5 | 410 | 450 |
| CT1020 | 8 | 760 | 450 |
| CT1024 | 9.5 | 1280 | 450 |
Note: Processing capacity may vary with different materials and feeding sizes.
