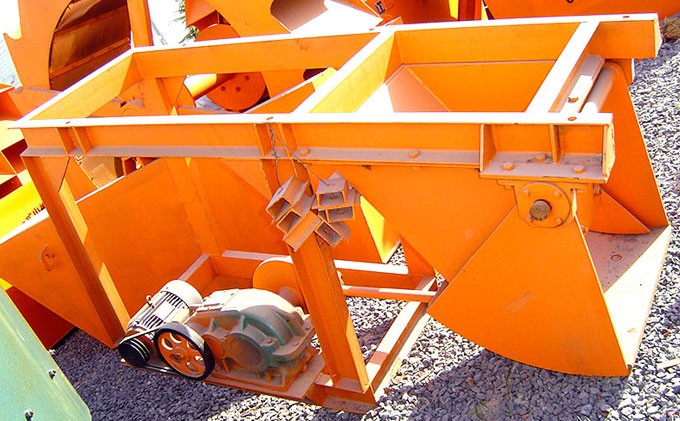

Pendulum Feeder

Pendulum Feeder

Applied material: granular material, powdery material, etc.

product image

Model: 400×400

Powder: 1.1 kw

Capacity

Capacity: 0-12 t/h

product image

Model: 600×600

Powder: 2.2 kw

 Capacity

Capacity: 3-25 t/h

product image

Click the "customizable" button to consult the quotation

  • Small-sized
  • Medium-sized
  • Large-sized
Customizable
online customer service

60s online
customer service

customize solutions

2 days customize
solutions

Factory visiting

Factory
visiting anytime

dispatch the goods

1-10 days dispatch
the goods

installation

One week
of installation

training

2 days of
training

after-sales online

365 days
after-sales online

Project tracking regularly

Project tracking
regularly

provide maintenance plan

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation.    Tip2: Free airport transfer and hotel accommodation.

Introduction and Application of Pendulum Feeder

The pendulum feeder is mechanical equipment installed under the storage tank or hopper that realizes continuous and uniform feeding. It transports dry and non-caking materials, such as ore, coal, etc.

However, it is not suitable for conveying powdery materials. Because it is easy to cause blockage and affect the feeding, and it can also cause powder floating and affect the cleanliness of the workplace.

It can also be used as a fastener when the feeder is not working.

Due to the worm gear reducer, the feeder has a compact structure and a reliable sealing device, which prevents dust and dirt from entering the interior and affecting its work.

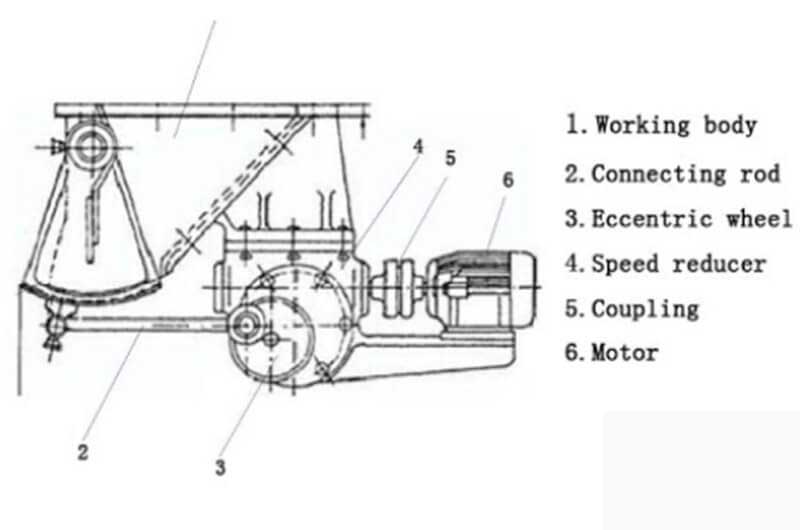

Structure of Fote pendulum feeder

Structure of Fote pendulum feeder

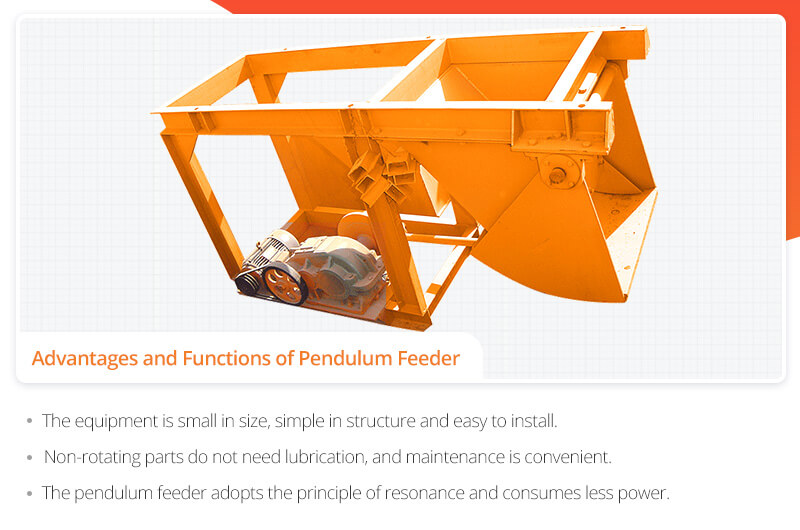

Advantages and Functions of Pendulum Feeder

Advantages and Functions of Pendulum Feeder

Advantages and Functions of Pendulum Feeder

  1. 1 The equipment is small in size, simple in structure and easy to install.
  2. 2 Non-rotating parts do not need lubrication, and maintenance is convenient.
  3. 3 The pendulum feeder adopts the principle of resonance and consumes less power.
  4. 4 Since the pendulum feeder can change and close the material flow, its feed volume has high accuracy.
  5. 5 The method of SCR opening angle can be adjusted in the work and production, and the centralized control and automatic control of the equipment can be carried out.
  6. 6 The pendulum feeder has a very stable vibration, good working performance, no noise, and long service life.

Working Process of Pendulum Feeder

When the pendulum feeder is working, its motor is decelerated by the V-belt reducer. The decelerated power is transferred to the eccentric wheels with adjustable eccentricity.

Then the eccentric wheels drive the swinging bottom plate to swing by the connecting rod.

The ore in the ore bin above the feeder passes through the inner cavity of the feeder and is discharged out of the machine at a constant speed from the discharge port to ensure uniform feeding to the ball mill.

There are two ways to adjust feeding capacity:

  1. 1 Adjust the eccentricity of the eccentric wheel
  2. 2 Adjust the ore drawing gate.

Parameter

Product Size Processimg Capacity(t/h) Motor Power
(kw)
400×400 0-12 1.1
600×600 3-25 2.2
Product Size Processimg Capacity
(t/h)
Motor Power
(kw)
400×400 0-12 1.1
600×600 3-25 2.2
