Dolomite Powder Grinding: Production Lines and Proven Mills

Dolomite is an indispensable raw material in industrial applications. After fine grinding, this mineral can be applied in various fields such as steel smelting, building materials, and environmental protection desulfurization.

A dolomite powder production line can process dolomite into high-quality powder, making it the top choice for numerous dolomite processing plants.

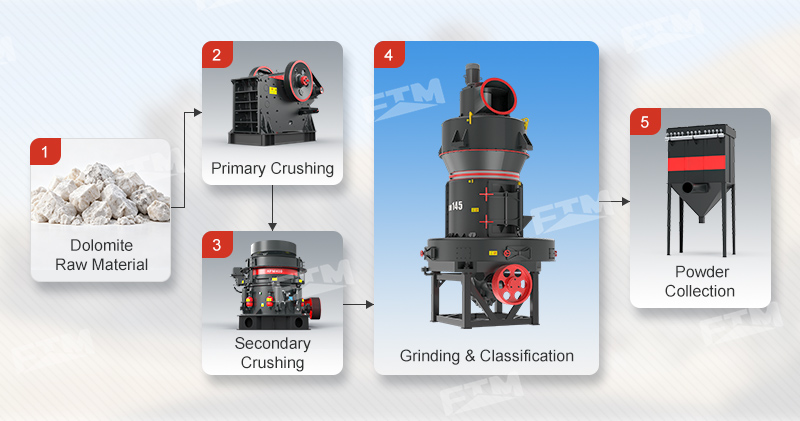

Dolomite grinding process flow

A standard and mature dolomite powder production line follows a four-stage process of "Crushing → Grinding → Classification → Collection", with each link working together to ensure product quality and production efficiency.

1. Dolomite crushing

After mining, dolomite ore usually has a large particle size and cannot be fed directly into the grinding mill. It needs to go through two-stage crushing:

• Coarse crushing: Large-sized dolomite raw ore (with a maximum particle size ≤ 1,200 mm) is crushed to less than 200 mm by a jaw crusher.
• Medium and fine crushing: According to the requirements for feeding into the mill, the crushed dolomite is further finely crushed to 20–50 mm by a impact crusher.

Optional pretreatment: For high-mud dolomite ore, add an ore washer to de-sludge and de-water, avoiding impaired grinding efficiency and reduced finished powder whiteness.

2. Mill grinding

The crushed dolomite is sent to the raw material bin by a bucket elevator, and then fed into the dolomite grinding equipment by an vibrating feeder for grinding.

3. Airflow classification

The ground dolomite powder will flow upward with the airflow in the grinding equipment and enter the classification process.

Dolomite powder that meets the fineness requirements passes through the classifier and enters the collection system with the airflow. Oversized dolomite particles are thrown out by the classifier, falls along the cylinder wall, and returns to the grinding chamber for secondary grinding.

4. Finished product collection

Qualified dolomite powder enters the collection device to be collected.

Mainstream dolomite mills: comparison & selection reference

Our dolomite grinding equipment covers all mainstream processing needs to deliver optimal solutions for producers.

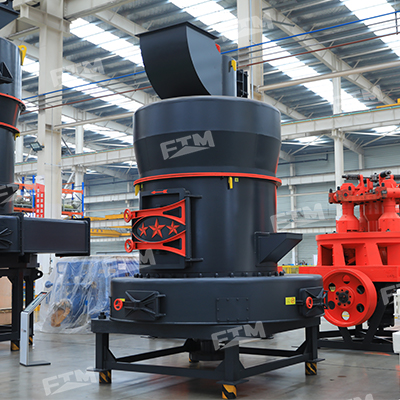

1. Raymond mill

The mill features a compact structure with a small footprint, straightforward daily operation and routine maintenance, low initial investment, and a short project payback period.

It fulfills conventional dolomite powder fineness requirements for sectors including metallurgical refractories and building material fillers.

For dolomite grinding, it has the following advantages:

• The mill's rollers and grinding rings are made of highly wear-resistant alloy to extend wear part service life and cut maintenance downtime and operating costs.
• Fully sealed grinding chamber stops powder leakage and foreign impurity ingress, maintaining stable dolomite powder whiteness.
• Custom classifier fits dolomite powder grading, securing qualified fineness and stable particle pass rate.

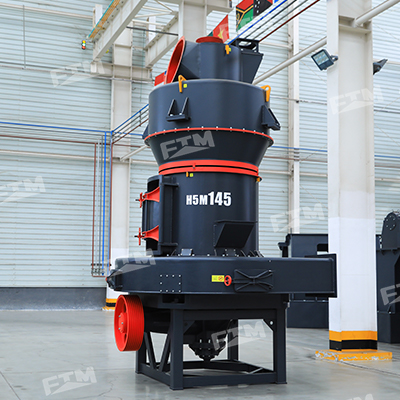

2. Ultrafine mill

An upgraded model of the Raymond mill, it features multiple improvements and optimizations based on the original structural framework. It cuts overall maintenance costs by over 50% and boosts processing capacity by 15%, with outstanding cost-effectiveness.

It meets the demand for higher fineness in dolomite powder production, and is suitable for small and medium-sized production lines that balance output capacity and product quality.

For dolomite grinding, it has the following advantages:

• It allows flexible adjustment of grinding pressure based on raw dolomite hardness and target product fineness, maintaining high grinding efficiency while minimizing over-grinding.
• A more refined classification system can meet the fineness requirements of dolomite powder in the fields of coatings and ceramic glazes.

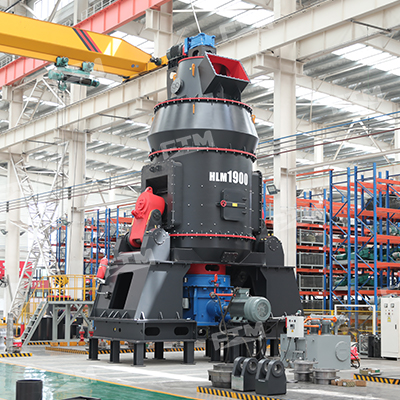

3. Vertical mineral grinding mill (Vertical roller mill)

It integrates crushing, drying, grinding and classification with a short process flow. Its large grinding surface delivers high grinding efficiency and substantial production capacity.

For dolomite grinding, it has the following advantages:

• Hydraulic grinding rollers deliver stable grinding pressure, suited for mass continuous dolomite powder production. Uniform particle size and consistent batch quality are guaranteed.
• Integrated drying handles wet dolomite ore, preventing roller adhesion and mill blockage to sustain steady production.
• Fully negative-pressure sealed circulation eliminates dust leakage, preserving dolomite powder whiteness.

Dolomite powder uses

Our dolomite grinding machine can make dolomite powder matching the fineness needs of all kinds of industries.

Application field	Fineness	Core requirements & application
Metallurgical refractory materials	80–200 mesh	High MgO content, steel-making flux, refractory brick raw material
Building material fillers	200–400 mesh	Magnesia cement, fire-proof boards, asphalt mixtures
Glass industry	325 mesh	Fe₂O₃ ≤ 0.1%, guarantee glass transparency
Ceramic industry	400–1,250 mesh	Body flux, lower firing temperature
Coating and plastic fillers	800–2,500 mesh	Improve surface finish and mechanical properties
Environmental protection desulfurization & soil improvement	80–200 mesh	High Ca & Mg content, strong reactivity

Customized dolomite grinding solutions

We customize full dolomite processing packages for all production capacities, ranging from standalone grinding units to full turnkey production line solutions.

Choose FTM Machinery and gain these core advantages:

• Trusted quality: 40+ years of dolomite grinding equipment manufacturing expertise, global sales across 100+ countries.
• Tailored production lines: Custom solutions matched to ore quality, output, fineness and applications.
• Cost-effective long-term operation: Durable wear parts, energy-efficient design and low failure rate ensure stable production and lower maintenance costs.
• Complete one-stop service: Covers site survey, installation, commissioning and training. Get your free consultation now
