8 Pieces of Gold Mining Equipment to Get Gold Concentrates

Author : Jordan Last Updated :

Gold is a special currency for reserves and investment, and it is also an important material for jewelry, electronics, modern communications, aerospace and other sectors. The value of gold motivates people to prospect, mine and process more gold ore to extract more gold. That's why you need gold mining equipment, more specifically mineral processing equipment.

gold uses

FTM company is committed to providing gold miners with efficient and robust gold mining equipment starting from crushing, grinding, gravity separation, flotation, helping them get a high gold recovery rate.

Whether you are extracting gold from alluvial gold, placer gold, gold ore in quartz, gold stones, or separating gold from lithium, silver, iron, copper, cobalt and lead, you need gold beneficiation equipment (often called gold recovery equipment). Commonly used are gravity gold recovery equipment, gold flotation equipment, and gold magnetic separator.

Gravity Gold Recovery Equipment

Shaking Table Yes, I am interested!

  • Shaking table, also called gold recovery table or gold separation table, is the best fine gold recovery equipment.
  • It can process both gold ore in quartz rock, gold stones, and placer gold.
  • The feeding particle size range of the shaking table is generally between 3mm-0.019mm.
  • The gold beneficiation is stable and reliable, and the distribution of the ore belt is clearly visible.
  • It consumes no drugs and less electricity, lowering the operation costs.
  • It can also be used for dredging operations in Gold Wash Plants, Gravity Separation Plants.

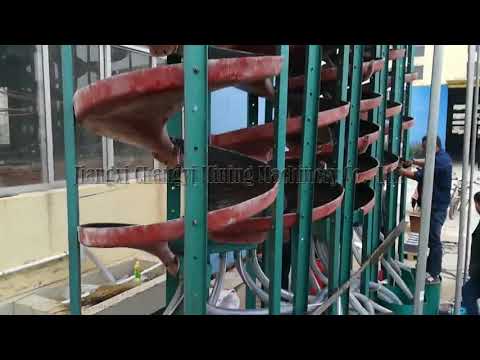

Spiral Chutes Yes, I am interested!

  • It utilizes the specific gravity difference between gold and other minerals to separate gold. It works better when processing placer gold.
  • It is also used to separate the iron, tin, wolframite, tantalum, niobium, chromite, rutile, monazite, etc.
  • The material size ranges from 0.6-0.03mm.
  • Compared with the gold shaker table, it is lighter and occupies a smaller area, reducing the transportation costs.

Gold Flotation Equipment

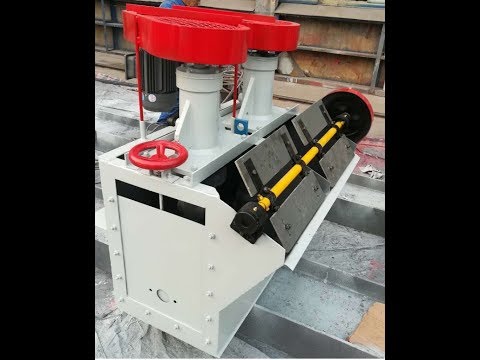

Flotation Cell Yes, I am interested!

  • Gold ores finer than 10 μm are difficult to recover by gravity separation. Froth flotation utilizes the hydrophobicity of gold to separate it from gangue, thereby recovering fine-grained and ultra-fine-grained gold particles.
  • Flotation can process sulfide-containing gold ore with high floatability and polymetallic gold-bearing ores such as gold-copper ore, gold-silver ore.
  • It is not recommended to use flotation to process ores with a particle size greater than 0.2mm and quartz gold ores without sulfides.

Gold Magnetic Separator

Magnetic Separator Yes, I am interested!

  • Magnetic gold separators are used to remove the high concentration of magnetite recovered with the gold before further processing. Therefore, they are efficient recovery machine for gold in iron ore.
  • Magnetic separators can recover gold trapped in magnetic black iron sand which can be seen in mining concentrates, tailing piles and on many beaches without fine gold loss.

Gold Ore Milling Machine

Grinding liberates more gold from gold ore in quartz, gold ore in granite, gold stones, gold hard rocks, tailings and black sand. Insufficient grinding causes a loss in gold recovery. Over-grinding results in higher unit cost in energy, grinding media, and reagent consumption. Commonly used gold mills are ball mills and wet pan mills.

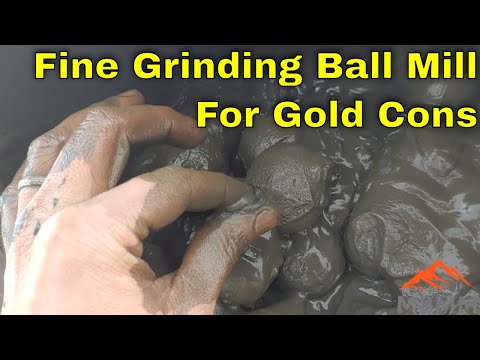

Ball Mill Yes, I am interested!

  • Ball milling methods include "dry" and "wet" grinding. Gold ore grinding plants often apply wet grinding.
  • In most cases, the inner surface of the shell is coated with wear-resistant linings for longer service life.
  • To improve the grinding efficiency, add a classifier to form a closed circuit, ration steel balls reasonably.

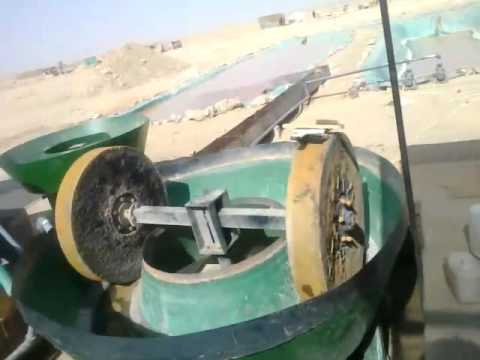

Wet Pan Mill Yes, I am interested!

  • Wet pan mill, also called gold grinder mill, is a versatile ore grinding pan mill for processing gold, silver, copper, etc.
  • As an affordable alternative to ball mills, wet pan mills are ideal and efficient equipment for ore beneficiation in small and medium gold processing plants.
  • Mercury is usually added to the wet pan mill to mix with the gold particles, so the wet pan mill is often referred to as an amalgamation grinding mill.

Gold Ore Rock Crusher

Gold ore rock crusher is mainly for crushing the hard gold-bearing quartz rocks into pieces with a particle size of less than one inch to improve the grinding efficiency. Usually, we choose a jaw crusher as the primary gold ore crusher, and a hammer crusher as the secondary gold rock crusher.

Jaw Crusher Yes, I am interested!

  • Jaw crushers are divided into large jaw crushers (>600mm), medium jaw crushers (300-600mm) and small jaw crushers (<300mm) according to the width of the feeding port.
  • Jaw plates are easy to be worn. Fote uses jaw plates made from high manganese steel and other wear-resistant materials to prolong the service life.
  • It's easy to replace the jaw plates. You just pull out a couple of bolts and replace them.

Hammer Crusher Yes, I am interested!

  • There are various types of hammer crushers, the most commonly used are single rotor hammer crushers and ring hammer crushers.
  • Several materials are applied for hammerhead for rocks with different hardness. The high manganese steel hammerheads are used to break hard quartz.
  • The grate of the small hammer crusher is made of alloy steel material with high hardness and good wear resistance, prolonging the service life.

This blog details the gold mining equipment needed in gold ore processing plants, whether it is placer gold or gold ore rock. According to the gold ore processing process of crushing, grinding, and beneficiation, the required equipment includes gold ore crushers, gold grinding mills and gold recovery equipment.

The type of gold ore and the type of gold mining determine which gold mining equipment you need to buy. Therefore, before purchasing, you must first know your gold ore types and gold ore mining details.
