A Complete Solution for Nickel Ore Processing

Author : Jordan Last Updated :

From the blog Nickel Metal in Battery: Why Is It Called the Devil's Metal, we learn that nickel sulfide ore and nickel oxide ore are important sources of nickel. The characteristics of these two kinds of nickel ores are quite different, so different nickel ore processing methods are applicable.

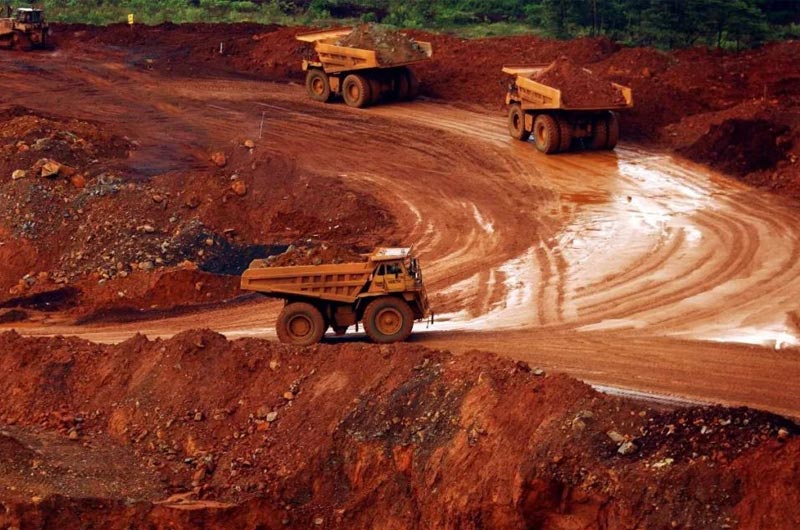

types of nickel ore: nickel sulfide ore and nickel oxide ore

1. Process flow of copper-nickel sulfide ore

A complete copper-nickel sulfide ore processing production line is crushing, grinding, flotation, and tailings treatment.

1.1 Copper-nickel sulfide ore crushing stage

Adopt a two-stage closed-circuit crushing process.

  • ① Use a jaw crusher for primary crushing.
  • ② Use a cone crusher for fine crushing.
  • ③ Use a vibrating feeder to screen out the products whose size meets the grinding requirements, while the oversized ones are returned to the cone crusher. The vibrating screen is often placed after the cone crusher.

1.2 Copper-nickel sulfide ore grinding stage

Adopt a two-stage closed-circuit grinding process.

  • ① Use a grid-type ball mill for rough grinding. And the grinding particle size range is 0.2~0.3mm.
  • ② Use an overflow-type ball mill for fine grinding. And the grinding particle size is less than 5~10μm.
  • ③ Use a spiral classifier for pre-classification. The spiral classifier is placed after the grid ball mill.
  • ④ Use a hydro-cyclone for fine classification to ensure that the particle size of ore in pulp meets the flotation requirements. Hydro-cyclones are often used in conjunction with overflow ball mills.

1.3 Copper-nickel sulfide ore beneficiation stage

Among the beneficiation methods of copper-nickel sulfide ore, flotation is the most vital one, magnetic separation and gravity separation are often used as auxiliary beneficiation methods.

A basic principle in determining the flotation process of copper-nickel ore is to prefer copper into nickel concentrates rather than nickel into copper concentrates. Because nickel in the copper concentrate loses during smelting, copper in the nickel concentrate can be recovered as much as possible.

The four common flotation methods of copper-nickel ore are as follows:

Preferential flotation of copper ore

This process can be used when the copper content of the ore is much higher than that of nickel.

Pump the ore pulp into the agitation tank, add the sulfide inhibitor and copper collector, send the mixture into the flotation machine to get copper concentrate and nickel-bearing tailings.

The nickel-containing tailings go through flotation to obtain nickel concentrate or copper-nickel concentrate.

copper nickel ore: Preferential flotation of copper ore

Copper-nickel mixed flotation

This method can be used when the copper content is lower than that of nickel.

Pump the ore pulp into the flotation machine to obtain a copper-nickel concentrate.

Further process copper-nickel concentrate to get copper concentrate with low nickel content and nickel concentrate with copper.

Obtain nickel matte by smelting nickel concentrate. The nickel matte is then separated by flotation.

copper nickel ore: Copper-nickel mixed flotation

Copper-nickel mixed flotation + tailings recovery

There are many kinds of nickel minerals contained in copper-nickel ore, such as pyrite and acicular pyrite. The floatability of these nickel minerals also varies.

When the floatability varies widely, obtain the copper-nickel concentrate by flotation first. And then the tailings go through another round of flotation to recover nickel-containing minerals with poor floatability.

copper nickel ore: copper-nickel mixed flotation + tailings recovery

Separation of copper and nickel

For the copper-nickel ore with coarse particle size and not very tightly embedded, the copper-nickel concentrate separation process is mostly used. At present, the commonly used separation methods for this process include the lime-cyanide method and lime-sodium sulfide method, pulp heating method, and bisulfite method.

For the copper-nickel ore with fine particle size and very densely embedded distribution, the separation process of nickel matte is mostly used.

2. Process flow of nickel oxide ore

Nickel oxide deposits are loose clay-like ore composed of iron, aluminum, silicon, and other hydrous oxides. Due to the oxidation of iron, the ore is red, so it is called laterite ore.

The beneficiation process of laterite ore is mainly to prepare qualified ore or pulp for smelting. Given the different properties and smelting requirements of laterite ore, the preparation methods of ore are also quite different.

2.1 Laterite ore processing for pyrometallurgy

The pyrometallurgical process is mainly suitable for humus-type nickel ore and silicon-magnesium-nickel ore.

Pyrometallurgy is characterized by calcining or roasting materials, and the basic requirements for ore are crushing and screening. Coarse grains (25mm-150mm) are used for calcination, fine grains are discarded or calcined after pelletization.

Crushing equipment

picture of jaw crusher

Jaw Crusher
Crush laterite ore with low moisture content and low ore viscosity

double toothed roller crusher

Double toothed roller crusher
Crush laterite ore with high moisture content and high ore viscosity.

Screening equipment

grid screen

Grid screen
The particle size of nickel laterite varies widely. We usually set up a grid screen above the raw ore silo to screen out qualified ores that can smoothly enter the subsequent equipment.

Trommel screen

Trommel screen
The trommel screen is used to process ores with high water content and high viscosity and to recover fine-grained ores.

vibrating screen

Vibrating screen
The vibrating screen is used to process ores with low water content and low viscosity.

Note that the laterite ore for pyrometallurgy cannot be washed with water and should be dried with a rotary dryer before crushing, if necessary.

Case for reference

The raw nickel laterite ore in PT INCO ferronickel plant in Indonesia contains 15% - 25% water, which belongs to dry laterite ore. The deposit is divided into two parts: east area and west area. The ore preparation flow chart of the deposit in the east area is shown in the figure below.

laterite ore processing flowchart

2.2 Laterite ore processing for hydrometallurgy

The hydrometallurgical process is mainly aimed at limonite and magnesium-nickel ore with a lower magnesium content.

Hydrometallurgy requires that the particle size, grade, and concentration of the pulp meet the leaching requirements, so it is necessary to wash the laterite ore (separation of coarse and fine particles), remove impurities (mainly remove the more abrasive chromite), and concentrate the pulp.

Crushing equipment

Double toothed roller crusher: Crush limonite.
Jaw crusher: Crush silicon-magnesium-nickel ore.

laterite ore crusher: jaw crusher and roller crusher

Screening equipment needs to be installed before or after the crusher to throw away the waste rock in time. The screening equipment is the same as above.

Washing equipment

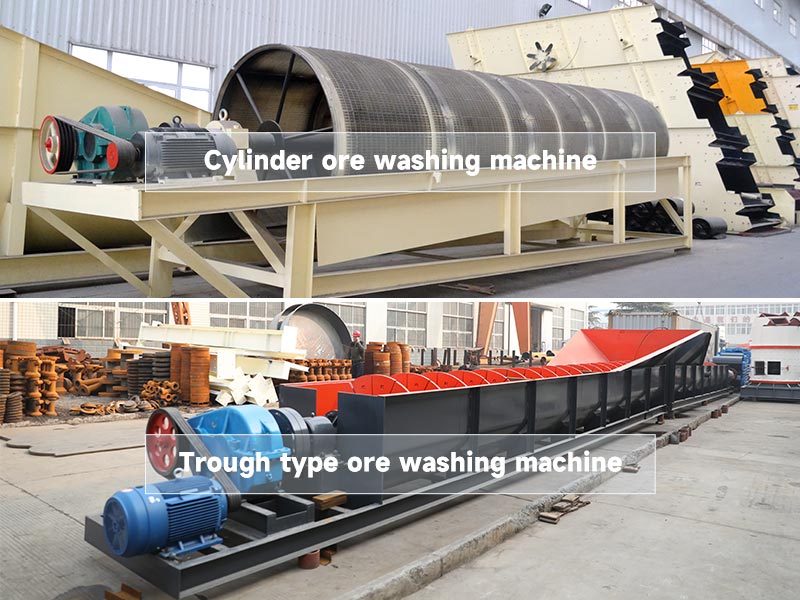

The ore is washed with high-pressure water in a cylinder washing machine and then washed in a spiral washer.

laterite ore washer: cylinder washing machine and spiral washer

Grinding equipment

The semi-autogenous grinding ball mill can not only reduce the entry of low-nickel and high-magnesium gangue minerals into the pulp but also reduce the consumption of steel balls.

laterite ore grinding machine: ball mill

Chromite removal equipment

At present, we often use water cyclones, spiral chutes, and shakers to remove chromite.

chromite processing equipment: hydrocyclone, spiral chute, shaking table

Concentration equipment

Given that the laterite ore is too fine to settle, a high-efficiency thickener is generally used to concentrate the pulp.

laterite ore concentration equipment: thickener


Case for reference

Cuban Maua Nickel Plant adopts pressure acid leaching technology to smelt nickel. Its laterite nickel ore mainly consisted of limonite, with a small amount of residual ore. The flow chart of ore production is as follows:

laterite ore processing flowchart

3. Conclusion

In nickel ore processing plants, the processing flow and production equipment will vary slightly due to the nickel ore composition. Therefore, it is necessary to carry out a beneficiation test first, design the nickel ore beneficiation process, and then customize production machines to effectively improve the nickel ore recovery rate and obtain an ideal return on investment.

As a proposer and practitioner of the whole mining industry chain service, Ftmmachinery can design the nickel ore beneficiation process and customize a complete set of beneficiation equipment for you. Welcome to consult Ftmmachinery.
