Rutile: How to Process This Titanium Ore?

Author : Jordan Last Updated :

Rutile is the first "titanium" to be recognized and discovered. Although its reserves are small, it has the most stable properties among titanium ores and its grade is much higher than that of ilmenite, so it is the preferred source of titanium ore.


R-type titanium dioxide required in mechanical, chemical, automotive, and other industries is rutile. Australia, Sierra Leone, South Africa, and Kenya strongly demand this mineral. This blog will explore rutile and its processing methods.

What is rutile?

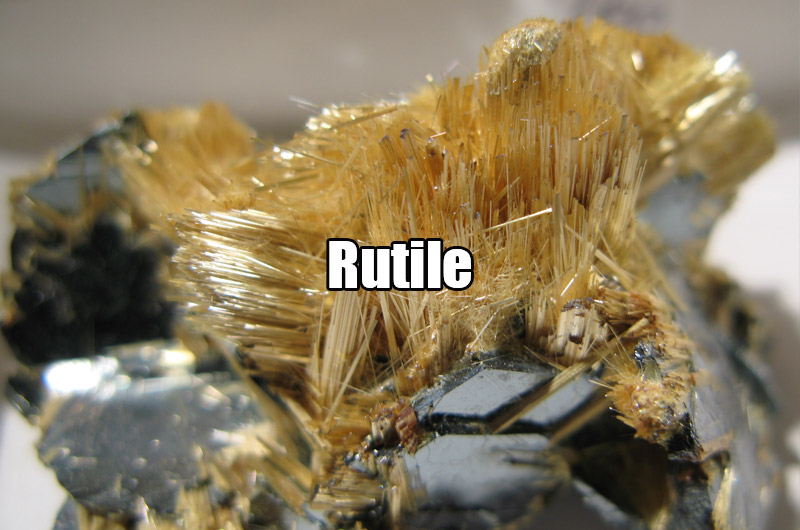

Rutile is an important titanium oxide mineral. It occurs as an accessory mineral in igneous rocks, eclogite, schist, gneiss, pegmatite, and other rocks, and also exists in the form of needle-like crystals in quartz, hematite, zircon, and other minerals.

Mineral properties of rutile

  • Rutile meaning: Rutile comes from the Latin word rutilis, meaning "red" or "glowing"
  • Rutile formula: TiO2
  • Rutile color: Reddish brown, red, light yellow, light blue, purple, rarely grass green or black
  • Rutile crystal: Tetragonal crystal system, often with intact tetragonal columnar or needle-shaped crystal forms
  • Rutile hardness: 6
  • Rutile streak: Light brown to light yellow
  • Specific gravity/Density: 4.2-4.3 g/cm3. If it contains iron, niobium, and tantalum, it can reach more than 5.5 g/cm3
  • Transparency: Transparent to opaque
  • Luster: Semi-golden to metallic luster
  • Rutile properties: Stable, resistant to heat, low temperature, and corrosion

Mining and processing of rutile

Popular mining areas for rutile are located in Gbangbama and Rotifunk in Sierra Leone, Binnental and Campolungo in Sweden, Georgia in the United States, Mount Ilmen in Russia, and New South Wales and Queensland in Australia.

Rutile is mined from hard rocks and heavy mineral sands. The latter is more economical. This blog will explore the mechanical processing methods of rutile after it is mined from two sources.

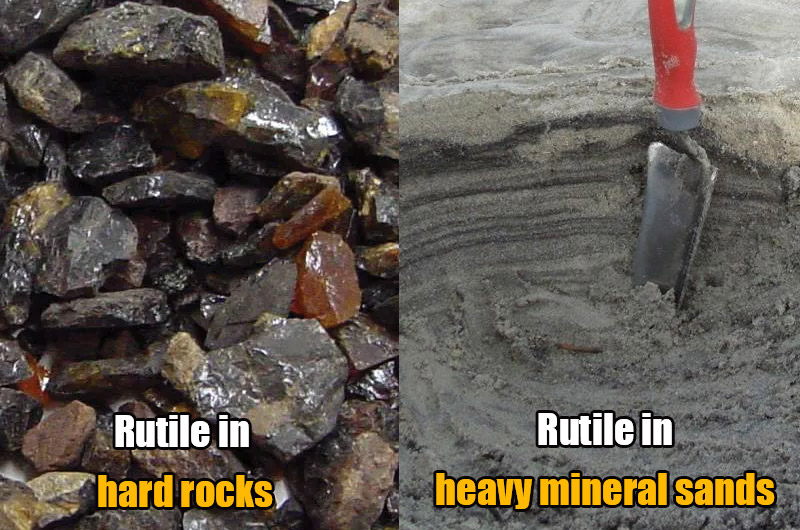

Rutile in hard rocks and heavy mineral sands

1. Processing rutile from hard rocks

The mineral studied is eclogite-type primary rutile ore. Its mineral characteristics are as follows:

  • The raw ore has fine particle size and contains TFe 14.95% and TiO2 5.14%.
  • The main industrial minerals are rutile and ilmenite, followed by titanium magnetite, hematite, and limonite.
  • Gangue minerals are garnet, omphacite, muscovite, hornblende, quartz, and apatite.
  • Garnet is an important factor affecting the grade and recovery rate of rutile concentrate.

Through multiple beneficiation tests, FTM Machinery found that combined beneficiation has the best effect on rutile recovery.

Therefore, the processing equipment includes a jaw crusher, impact crusher, vibrating screen, magnetic separator, shaking table, and flotation machine.

  • 1 Crushing:

    The shape of natural rutile ore is relatively large, so a jaw crusher must be used for primary crushing. At this time, a vibrating feeder is also required to feed the materials into the jaw crusher evenly, continuously, and quantitatively.

  • 2 Grinding:

    Rutile powder's versatility in producing high-grade titanium dioxide and refining titanium metal makes selecting the right grinding mill crucial. A cost-effective choice is a Raymond mill, while the ultrafine mill or vertical roller mill offers the finest grinding options, with an adjustable fineness of 80-600 mesh.

  • 3 Magnetic separation:

    Rutile is non-magnetic; garnet and ilmenite are magnetic, while hornblende and epidote are weakly magnetic. Therefore, weak magnetic separation-strong magnetic separation is used. Then garnet and ilmenite will be enriched in strong magnetic concentrate, separating them from rutile and omphacite.

  • 4 Gravity separation:

    Discard low-density minerals or fine mud to initially enrich rutile. Since the density difference between rutile mineral and omphacite is large, but the difference between rutile and garnet is small, a shaking table can separate rutile and omphacite well, though rutile-garnet separation is challenging.

  • 5 Flotation separation:

    Foam flotation can separate fine-grained rutile and remove undesired deposits like sulfides. Salicyl hydroxamic acid or butyl ether alcohol acts as the collector to recover rutile from copper-molybdenum ore tailings. Rutile grade and recovery rates are improved through a two-rough, one-sweep, and four-selection closed-circuit process.

Rutile processing result:

A rutile concentrate with 90% TiO2 and a garnet and omphacite concentrate with a purity of 88% are obtained. The recovery rates of the three minerals are all above 67%.

2. Processing rutile from heavy mineral sands

Take the Sierra Leone rutile processing plant as an example. The raw ore is found in beach sand and is mainly associated with ilmenite, zircon, rutile, and monazite.

The beneficiation steps of rutile are as follows:

  • 1 Desliming:

    Use a trommel screen to deslime and discard most of the slime.

  • 2 Gravity separation:

    Use a shaker table for gravity separation to separate heavy minerals (such as rutile and cassiterite) from a small amount of light minerals (such as quartzite or fine mud).

  • 3 Magnetic separation:

    Both dry and wet magnetic separation are possible. The weak magnetic separator separates magnetite, ilmenite, and other magnetic products from gravity separation coarse concentrate. Strong magnetic separation separates magnetic impurities of ilmenite and monazite to obtain rutile concentrate.

The rutile concentrate, a white powder, is used in producing bright white titanium dioxide pigments for items like paint, plastics, paper, and toothpaste. It is also utilized in titanium metal (titanium sponge) and refractory ceramics production. Customize your rutile processing solution!
